BRIGADE Bridge Analysis Software
For the structural analysis and design of bridges and civil structures.
What is BRIGADE?
BRIGADE is a market-leading software package that provides a complete range of static and dynamic analysis procedures, automatic handling of moving vehicle loads, pre-stressing, advanced load combinations, and non-linear capabilities.
It is designed to cater to both standard and complex bridge structures, offering an intuitive user interface that is easy to learn for new users and highly productive for experienced users.
Most popular uses for BRIGADE

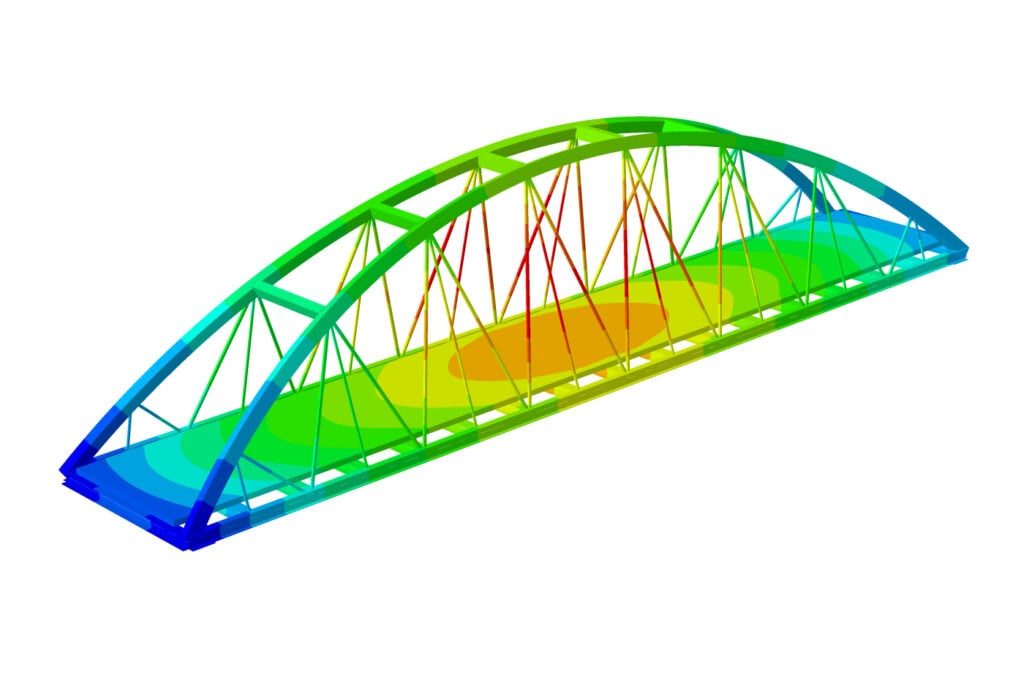

Bridge design
BRIGADE is an indispensable tool for companies involved in bridge design. The development of BRIGADE has focused on enhancing workflow, features, and result reporting. This emphasis is particularly evident in its handling of moving loads and load combinations according to design codes. These features are highly valued by engineers, whether designing a simple single-span bridge or a more aesthetically or structurally complex bridge.
Load rating of bridges
Load rating is key to keeping bridges safe, functional, and efficient to maintain. By understanding actual capacity, engineers can make informed decisions on repairs, strengthening, or reclassification – often avoiding unnecessary work.
Accurate traffic load management is central to this process. BRIGADE’s powerful tools for modeling moving loads and load combinations give the users the ability to perform these checks efficiently and with confidence. Users can decide to either use the standard load models included or create their own custom vehicles. This results in trusted load ratings and smarter infrastructure decisions.

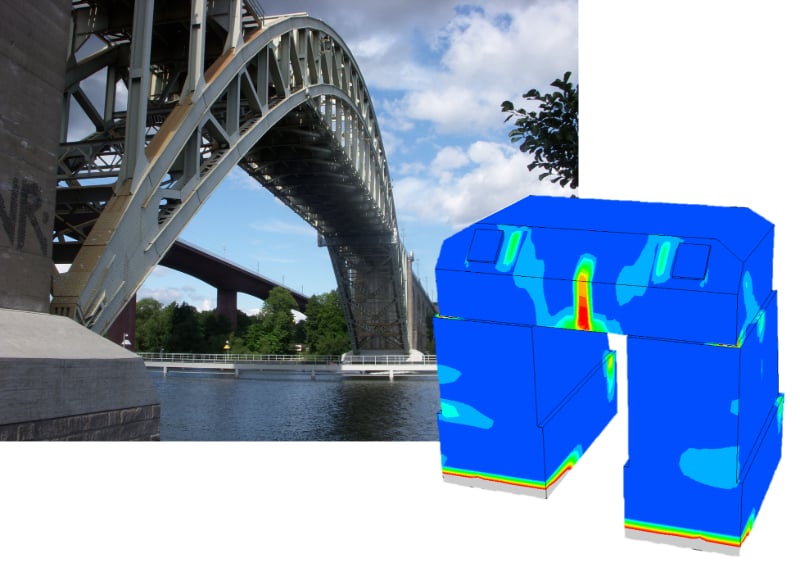

Damage assessment
When structural damage on a bridge is detected – cracks, corrosion, settlement, or fatigue – an accurate assessment of the bridge’s condition is crucial. BRIGADE/Plus helps engineers evaluate how damage affects a bridge’s performance and load-carrying capacity. With BRIGADE/Plus, you can modify geometry, reduce stiffness in critical members, or remove damaged components entirely – all within a powerful FE environment.
This allows you to simulate realistic scenarios and understand residual capacity after damage. You can use linear analyses or non-linear analyses, including nonlinear materials, nonlinear geometry (buckling), and contacts. This results in confident decision-making and optimized resource use when your structure needs it most.

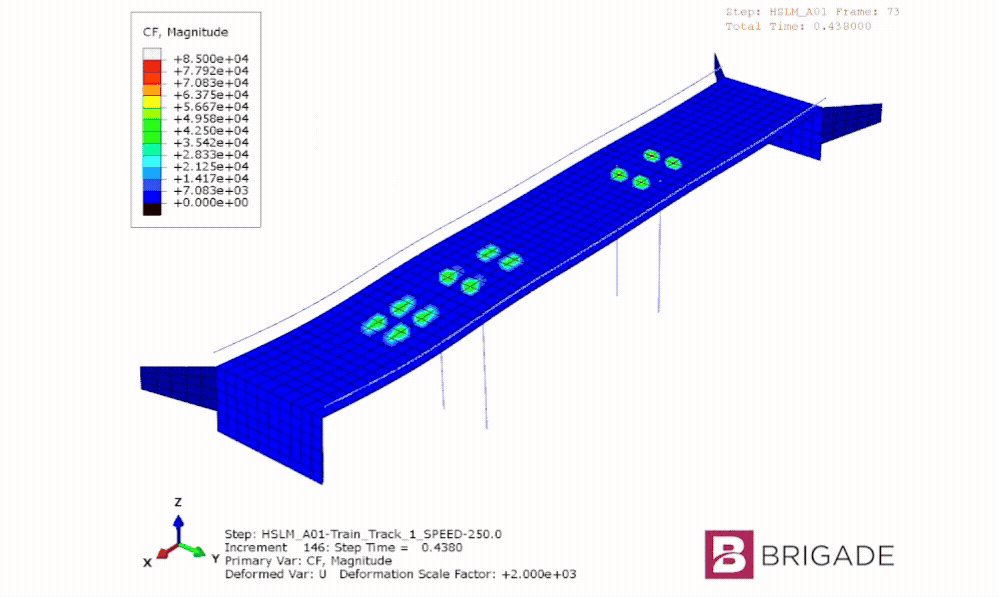

Dynamic analysis of bridges
In most bridge projects, dynamic effects are handled using dynamic magnification factors from design standards like the Eurocodes. But when it comes to high-speed rail, that’s not enough. Resonance effects can cause excessive vibrations or displacements – and only real dynamic simulations can capture this behavior accurately.
With BRIGADE/Plus, you can perform full dynamic analyses that consider the dynamic effects of moving loads from high-speed trains. Whether you’re assessing resonance risk, critical speeds, or damping effects, BRIGADE/Plus gives you the precision you need. Engineers also rely on BRIGADE/Plus to simulate other transient loads, such as wind and seismic events – helping ensure both safety and compliance with relevant standards.
Civil and structural engineering analysis
While BRIGADE is built for bridges, its powerful analysis engine is just as effective for a wide range of civil and structural engineering tasks. From tunnels, retaining walls, and foundations to tanks, slabs, and custom steel or concrete structures, BRIGADE/Plus gives you the flexibility to model and simulate complex geometries and loading scenarios with ease.
With BRIGADE/Plus, you’re not locked into bridge-specific templates. You can build exactly what your project requires – and still benefit from the same robust solvers and clear result presentation. BRIGADE/Plus provides a single solution for all your structural analysis needs, whether you’re working above or below ground, inside or outside the bridge domain.
Why use BRIGADE?
Whether you’re working on standard bridge projects or complex civil engineering structures, BRIGADE is a powerful tool with functionalities that help to ensure efficiency, accuracy, and compliance with industry standards.
Delivers the full range of analysis methods needed for any bridge engineer; whether you’re studying seismic load, the static response of a standard frame bridge, the dynamic response from high-speed trains, or studying non-linear time dependent effects in materials.
The automatic handling of moving vehicle loads and complex load combinations, according to predefined design codes, simplifies the design process and ensures accuracy.
BRIGADE’s intuitive user interfaces are easy to learn for new users and highly productive for experienced users.
BRIGADE uses Abaqus integrated solver technology to solve numerical equations. This ensures that BRIGADE’s core solver is constantly developed and recognized as a market leader. The Abaqus solver provides robust calculations and delivers accurate results.
No coding knowledge is needed to use BRIGADE, but the pre- and post-processing phases can be scripted/coded in Python – one of the most widely used coding languages. Users can automate workflows by scripting both the entire modeling phase of a structure or bridge and the output phase.
BRIGADE’s wide range of post-processing features enables the efficient interpretation of results.
Reinforcement in accordance with Eurocode can easily be calculated using the Concrete Designer module.
What can you do with BRIGADE?
BRIGADE offers a comprehensive suite of analysis methods, modules, and features designed to meet the diverse needs of bridge and civil structure analysis. From static and dynamic analysis to advanced load handling and result visualization, BRIGADE equips engineers with the tools necessary to ensure precision and efficiency in their projects.
Static and dynamic analysis
Perform comprehensive static and dynamic analyses to evaluate structural performance under various conditions.
Prestressing analysis
Analyze the effects of prestressing, including short-term and long-term losses, to ensure structural integrity.
Segmental construction
BRIGADE/Plus offers the possibility to analyze the effect of segmental construction by adding and removing parts of the structure, loads, boundary conditions, etc., during analysis.
Non-linear analysis
BRIGADE/Plus offers the possibility to perform non-linear analyses, including geometrical and nonlinear material behavior and contacts.
Moving loads
BRIGADE/Plus and BRIGADE/Standard include a market-leading technique for evaluation of the static response of moving loads. The technique is based on influence surfaces/influence lines and mesh-independent traffic lane alignments. Vehicles can consist of axles with fixed or variable internal distances and in combination with moving surface loads. Multiple simultaneous vehicles in different lanes are handled automatically.
Load combination
BRIGADE/Plus and BRIGADE/Standard include a state-of-the-art load combination facility automatically taking into account whether the loads provide an adverse or relieving effect on the structure. Load combinations can be created manually or generated from a library of design code specific combinations e.g. Eurocode.
Result visualization
Visualize results in 3D plots and 2D graphs and generate detailed reports for efficient interpretation and communication.
How to choose your bridge analysis software
When selecting the most suitable bridge analysis software for your organization, it’s crucial to consider the complexity of your projects and the specific features required.
BRIGADE/Standard
For standard bridge structures, BRIGADE/Standard offers user-friendly interfaces and predefined traffic loads that simplify the design process.
BRIGADE/Plus
For more complex bridge projects or any other type of structure, BRIGADE/Plus provides advanced modeling and analysis capabilities, including support for intricate geometries and dynamic load conditions.
How to buy Brigade
Looking to purchase Brigade licenses? Want to see a demo to understand what Brigade can do? Or do you need to speak to an expert before you can make your decision?
Brigade comes in all shapes and sizes. We’re here to make sure that you’re getting the right software package for your team.
